Kaspersky Antidrone hardware
Kaspersky Antidrone permits the use of a wide range of devices to scan the airspace and detect airborne objects: the sensors flexibly integrate with the system to suit the specific needs and threat model.
Hardware
Portable detector
This module classifies an object at any time of day thanks to thermal imaging cameras, determines the distance to the object and performs targeting, waiting for a command to be sent to the jamming device.
- Detection range
- up to 800 m
- Vertical angle
- from +45° to -90°
- Horizontal angle
- from 0° to 360°
- Rotation speed
- 8 rpm
- Precision
- 0.01°
- Weight
- 20 kg
- Dimensions
- 400×380×310
- Protection
- IP65
- Operating temperature range from
- -20 °С
- Operating temperature range to
- +40 °С
- Interface
- Ethernet
- Power supply
- ~220 V, 150 W

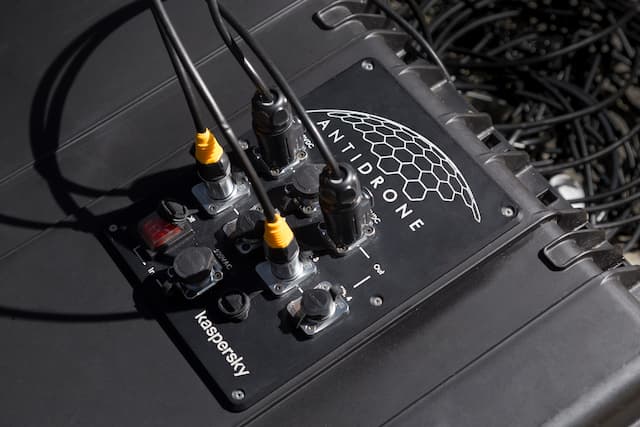

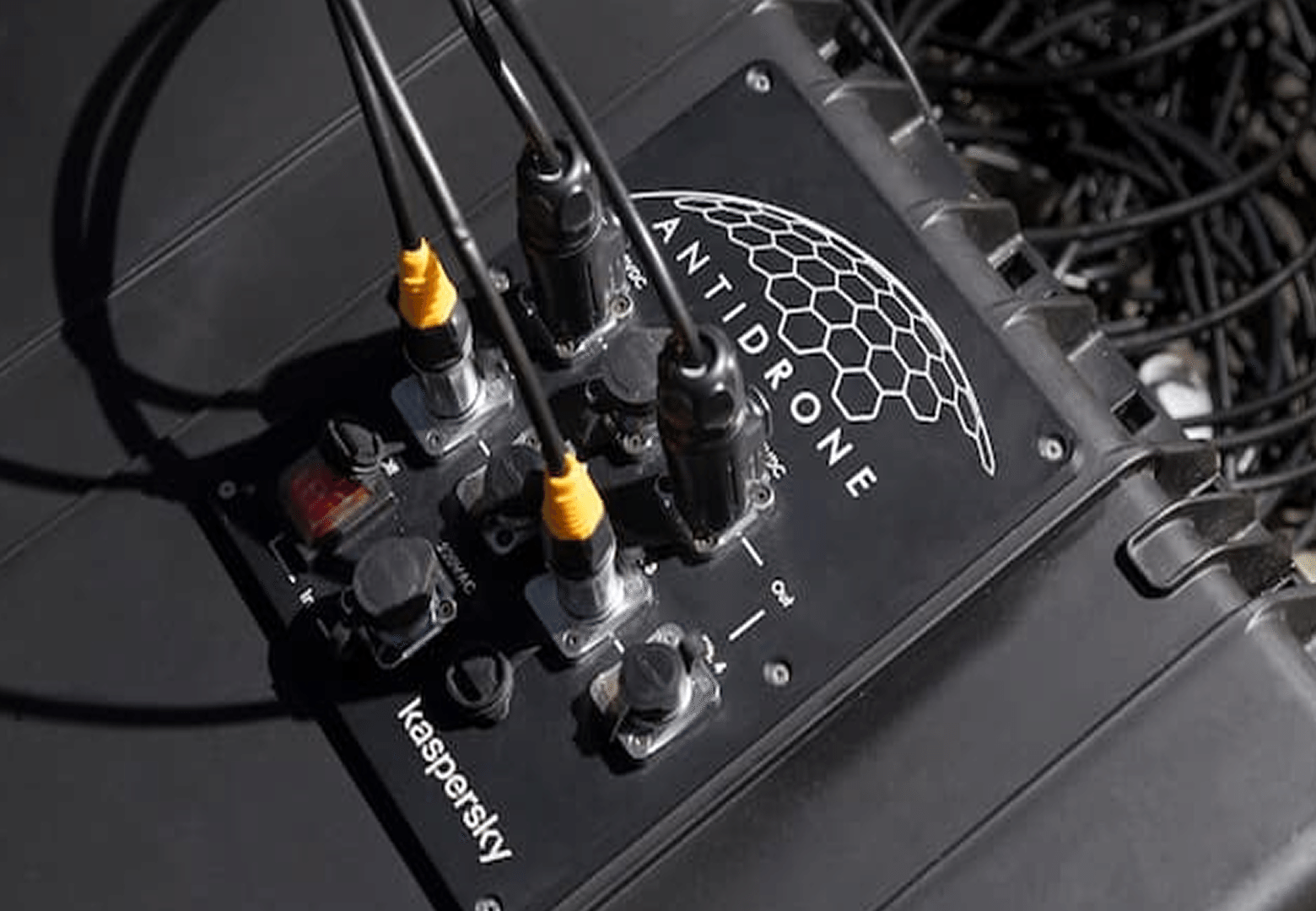

Processing module
The module is a system server. The server is portable, which allows you to deploy the system at a convenient location. It processes all the data from the sensors and makes security decisions.
- Processor
- Intel Core i7
- RAM
- 32 GB
- Hard disk
- 512 GB SSD
- Graphics card
- NVIDIA GTX3080
- Weight
- 25 kg
- Dimensions
- 782×525×319
- Protection
- IP54
- Operating temperature range from
- -20 °С
- Operating temperature range to
- +40 °С
- Power supply
- ~220 V, 1000 W
Portable UAV detector
This module classifies an object at any time of day thanks to thermal imaging cameras, determines the distance to the object and performs targeting, waiting for a command to be sent to the jamming device.
- Detection range
- up to 1000 m
- Pilot detection
- ✓
- IFF system
- ✓
- Weight
- 5 kg
- Protection
- IP65
- Interface
- Ethernet
- Power supply
- ~220 V, 150 W

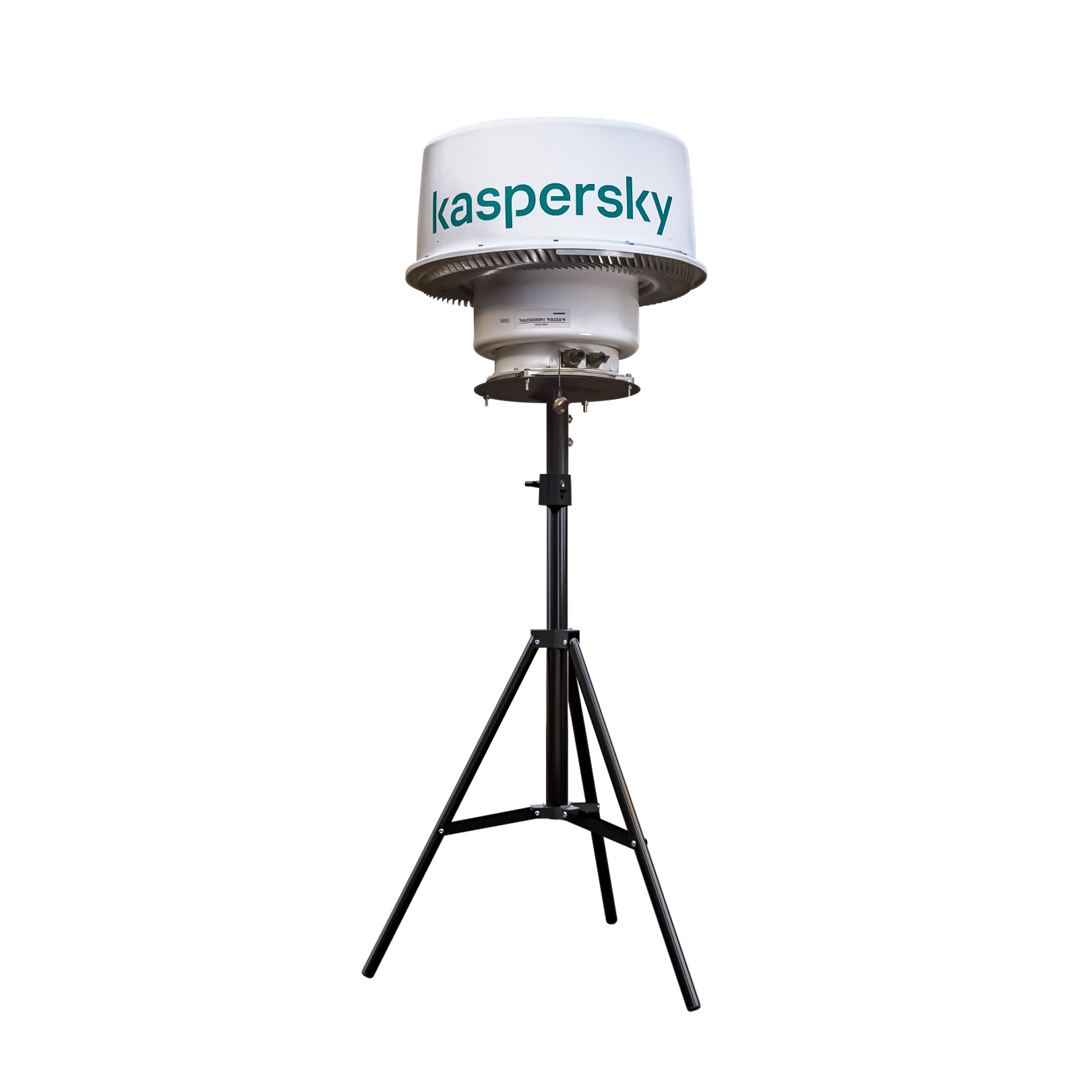

Radar
Radar-based detection device suitable for use at large sites areas, day and night, in all weather conditions.
- Detection range
- up to 1800 m
- Vertical angle
- 60°
- Horizontal angle
- 360°
- Protection
- IP65
- Operating temperature range from
- -20 °С
- Operating temperature range to
- +40 °С
- Interface
- Ethernet
- Power supply
- ~220 V, 150 W
Radio frequency scanner
RF scanning is suitable for large sites, including those in urban areas, regardless of time of day or weather conditions, with the ability to determine the location of the pilot.
- Detection range
- up to 4000 m
- Pilot detection
- ✓
- Vertical angle
- 360°
- Horizontal angle
- 360°
- Power supply
- ~220 V, 150 W

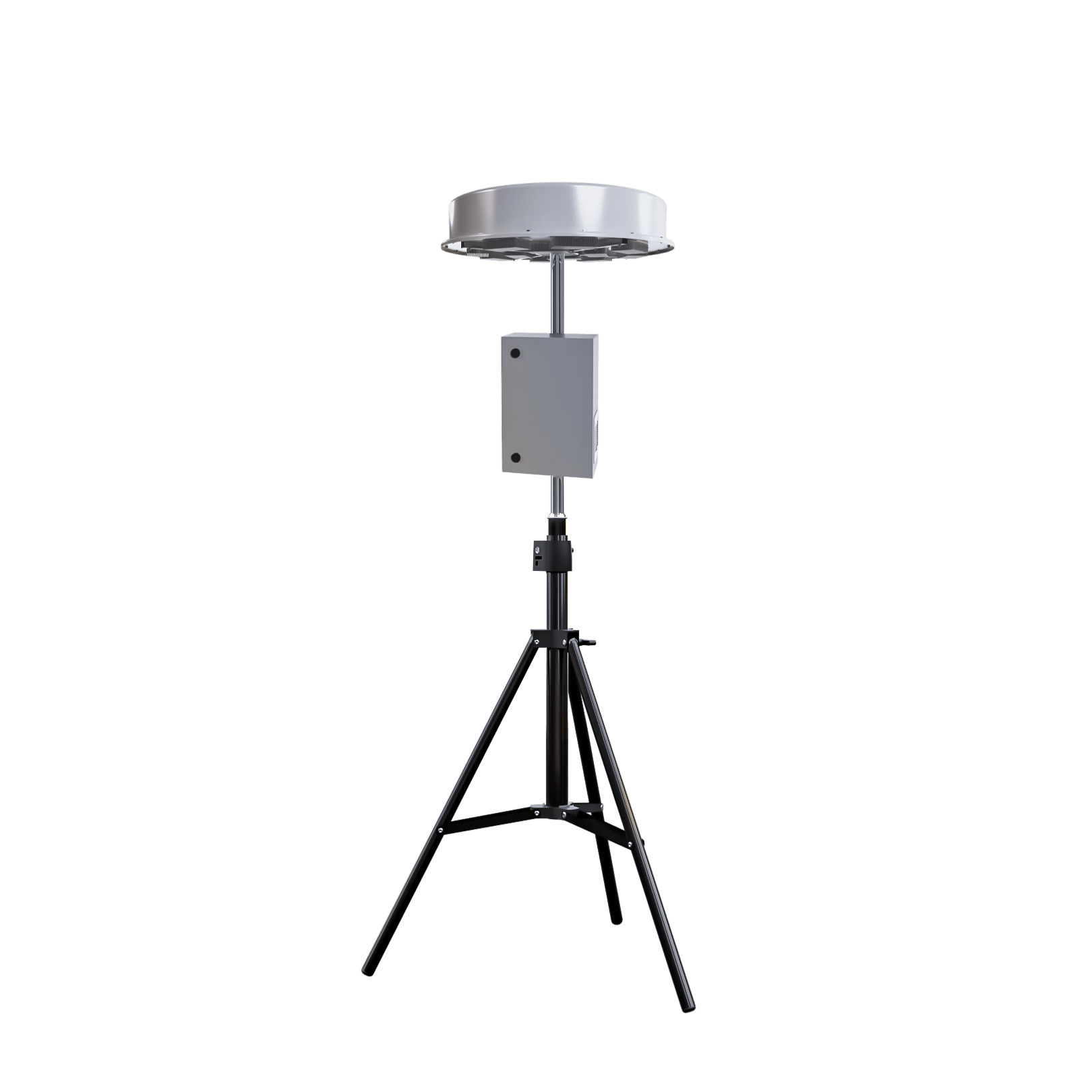

Jamming module
Jamming UAVs is possible by creating interference on frequency channels. It prevents the drone from sending control or navigation signals and reaching its final destination, causing the aircraft to force a landing or return to the point of launch.
- Jamming range
- 2000 m
- Weight
- 20 kg
- Protection
- IP65
- Power
- Up to 100 W for a channel
- Jamming frequencies
- 300 - 6000 MHz

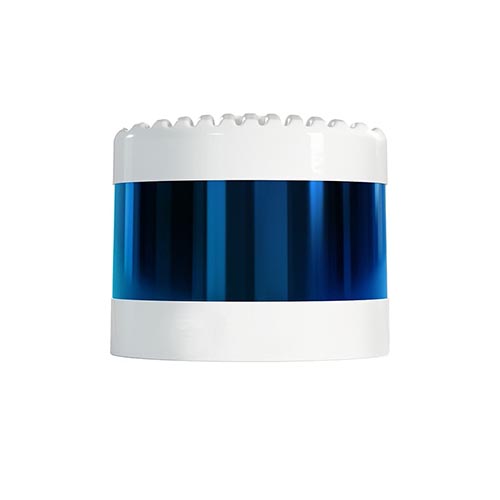

Lidar
Laser scanning technology provides 360-degree monitoring of airspace within a radius of up to 1 kilometer. The technology does not require additional permits and can be used at sites within city limits.
- Detection range
- 300 m
- Vertical angle
- 40°
- Horizontal angle
- 360°
- Weight
- 1 kg
- Protection
- IP65
- Operating temperature range from
- -20 °С
- Operating temperature range to
- +40 °С
- Interface
- Ethernet
- Power supply
- ~220 V, 150 W
